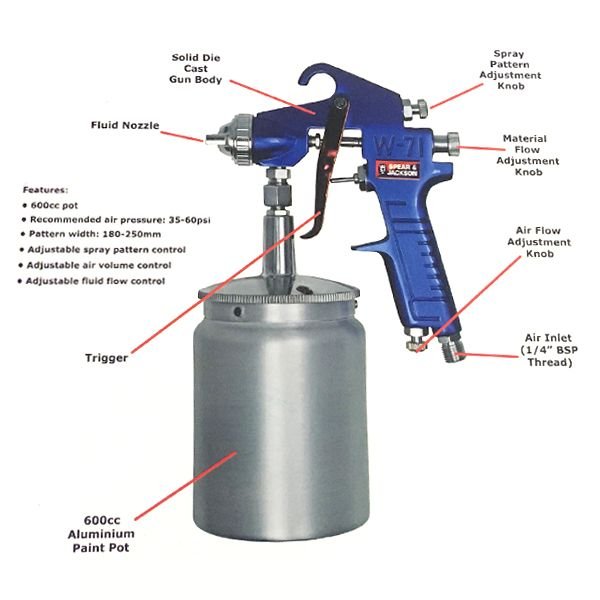

Spray Gun 喷枪

Sale!

$17.00 $15.00

Specifications:
REGULATOR
Air Inlet: G 1/4″
Gauge Range: 0 – 12.4 Bar (0 – 180 psi)
Max. Air Inlet Pressure: 11.03 Bar (160 psi)
SMALL GUN
Air Inlet: G 1/4″
Avg. Air Consumption: 56 – 113 L/min (2 – 4 CFM)
Cup Size: 100 mL
Fluid Orifice: 1mm
Max. Air Inlet Pressure: 2.00 Bar(30 psi)
Nozzle Pressure: 0.86 – 1.58 Bar (12.5 – 23 psi)
MEDIUM/LARGE GUNS
Air Inlet: G 1/4″
Avg. Air Consumption: 170 – 255 L/min (6 – 9 CFM)
Cup Size: 1 Litre
Fluid Orifice: 1 .4/1.7mm
Max. Air Inlet Pressure: 2.96 Bar (43 psi)
Nozzle Pressure: 0.48 – 0.86 / 0.62 – 0.86 Bar (7 – 12.5 psi / 9 – 12.5 psi)

规格:REGULATORAir进口:G 1/4“表压范围:0 – 12.4巴(0 – 180 psi)最大进气压力:11.03巴(160 psi)SMALL GUNAir进气口:G 1/4”平均。 耗气量:56 – 113 L / min(2 – 4 CFM)杯子尺寸:100 mL流体孔径:1mmMax。 进气口压力:2.00巴(30 psi)喷嘴压力:0.86 – 1.58巴(12.5 – 23 psi)中/大口径:G 1/4“平均空气消耗量:170 – 255 L / min(6 – 9 CFM) )杯子尺寸:1 LitreFluid孔口:1.4 / 1.7mmMax。进气口压力:2.96巴(43 psi)喷嘴压力:0.48 – 0.86 / 0.62 – 0.86巴(7 – 12.5 psi / 9 – 12.5 psi)

12 in stock

Compare

Description

特点:1)工作压力:15 – 45 PSI2)标准喷嘴尖端:1.4mm3)可用喷嘴尖端:1.0-2.5mm4)空气消耗:400L / M @ 45PSI5)杯子容量:600ml6)进风口:1 / 4“NPT或1/4”BSP7)包装:10pcs / ctn8)运输:数量/ 20’CLL:6600pcsAIR消耗(100%)CFM:8CUP尺寸:600MLNZZLE尺寸:1.1MM,1.3MM,1.4MMAIR压力:29- 36PSIAIR INLET:1/4“

Features:
1) Operating pressure: 15 – 45 PSI
2) Standard tip of nozzle: 1.4mm
3) Available tip of nozzle: 1.0-2.5mm
4) Air consumption: 400L/M@45PSI
5) Capacity of cup: 600ml
6) Air inlet: 1/4″ NPT or 1/4″ BSP
7) Packing: 10pcs/ctn
8) Conveyance: Qty/20′ FCL: 6600pcsAIR CONSUMPTION(100%)CFM:8
CUP SIZE:600ML
NOZZLE SIZE:1.1MM,1.3MM,1.4MM
AIR PRESSURE:29-36PSI
AIR INLET:1/4 “
